446 Series Stereo Microscpe

Model 446TBL-10

All the quality features and versatility of larger stereo microscopes, in a compact size that is more efficient for many uses. Choose low or high magnification simply by turning the objective turret. Viewing head is 45 degrees inclined and rotates 360 degrees so that user can position microscope conveniently in forward or reverse viewing position. Post mount permits head to be adjusted up or down to accommodate larger objects on stage.

OPTICAL SYSTEM

  • Paired widefield eyepieces with diopter adjustment on left side. Interpupillary adjustment from 55mm to 75mm. Reticle holder/retainer accepts eyepiece reticle with 23mm O.D..
  • Paired objectives are parfocalled, parcentered, achromatic.
  • Magnification changed by rotating objective turret 90 degrees, to positive click stop.
  • Working distance: 75mm. Maximum specimen height on stage, 35mm
  • Head rotates 360 degrees to permit reverse head position viewing.
  • Standard magnification 10x and 30x.
  • Optional magnification 20x and 40x (Model 447TBL-10)
  • Optional magnification 10x and 20x (Model 448TBL-10)

ILLUMINATION

  • High intensity 12v 10 watt incidental and transmitted illumination is built-in.
  • Separate base mounted switches control power on/off, top and bottom lights, permit use of top light only, bottom light only, top and bottom lights together.

FOCUSING

  • Rack & pinion focusing has slip clutch to protect mechanism against over-turning, and special tension adjustment.

STAGE

  • Supplied with two 80mm stage plates, one frosted glass and one plastic black/white reversible contrast. Two locked-on stage clips.

FRAME

  • Rugged cast metal frame, gray enamel finish.
  • Height: 310mm (12-1/4 in.) extends to 370mm (14-3/4 in.) for larger objects.
  • Base width: 115mm (4-1/2 in.), Base depth: 197mm (7-3/4 in.)
  • Net wt. 2.5 kgs (5.5 lbs)

PACKING

  • Molded styrofoam container with instruction brochure, vinyl dustcover & rubber eyeshields.
  • Individual: Ship wt. 4.1 kgs (9 lbs), Dimensions 400x425x275mm (16x17x11 in.)
  • Master carton pack 4 each: Ship wt. 15 kgs (33 lbs), Dimensions 725x375x325mm (29x15x13 in.)

WARRANTY

  • Limited Lifetime Warranty, excluding bulbs, cord, and fuse.

PrintPrinter Friendly View

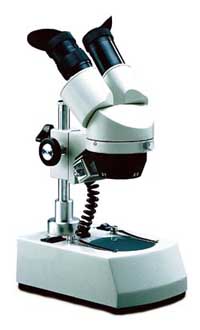

446 Series Stereo Microscpe Picture

Product Number Description MSRP 1-9 Units 10+ Units
446TBL-10

A compact size, full featured student stereo microscope.

Suitable for all grade levels.

$289.00 $259.00 $249.00
Additional Product Options
Product Number Description MSRP 1-9 Units 10+ Units
447TBL-10 Same as above with 20x and 40x Magnification $289.00 $259.00 $249.00
