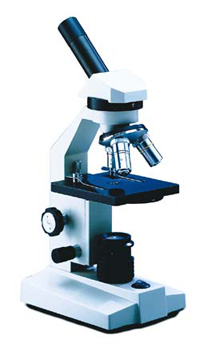

A "Top Choice" for a standard student microscope for all grades

 Superior DIN optical system combined with extra rugged construction.

Features Corded LED illumination, delivers higher light efficiency than standard 20 watt tungsten bulb and assures cool operating temperature, living specimens last longer.

Recommended for instruction through grade 12.

Optical System

• Widefield 10x eyepiece with revolving pointer
• 45 degree inclined viewing head rotates 360 degrees for easy repositioning of eyepiece and sharing by more than one student
• DIN 4x, 10x, and 40xR objectives are color coded, achromatic
• 3 hole nosepiece is ball bearing mounted for more precise alignment, has positive click stops

Illumination

• Built in LED illumination
• Rated up to 100,000 hours of life
• Delivers whiter light and longer life than standard 20 watt tungsten bulb
• No heat in base, safer to use, living specimens last longer
• Base mounted on/off switch
• Heavy duty 3 wire cord with "grabber" clip on plug

Focusing System

• Low position coarse and fine focusing controls
• Stage moves up and down, eyepiece and body remain fixed
• Slip clutch prevents damage to focusing system
• Tension adjustment eliminates stage drift
• Safety rack stop prevents damage to slides and lenses

Stage

• Large 110mm by 120mm stage
• Locked on, spring mounted stage clips
• Predrilled and tapped to accept optional mechanical stage
• In-stage 0.65NA condenser lens
• Calibrated 5 hole disc diaphragm

Frame

• Rugged, all metal with enamel finish
• Height 360mm Net weight 3.1 kgs
