211 Student Microscope by National Optical

A new standard of precision optics, highly engineered mechanics and very rugged construction, all at little more cost than a budget microscope.  Objective turret (nosepiece) is in reverse position to permit easier changing and positioning of specimen slides.  Preferred by teachers, the corded LED illumination system provides optimum image brightness, virtually no bulb heat and has a 100,000-hour rated bulb life.



Does NOT include 100x Oil Immersion Objective.

Please see Model 212 Listed Under "Advanced Placement" Microscopes



Recommended for Grades 6 Through 12



OPTICAL SYSTEM

·         Widefield 10x eyepiece with pointer.  Accepts optional #965-160 eyepiece reticle.

·         45° inclined monocular viewing head rotates 360° for easy sharing by more than one student.

·         DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.) and 40xR (0.65 N.A.) objectives are supplied for 40x, 100x and 400x magnification.  Model 212 also includes 100xR (1.25 N.A.) oil immersion lens.  All are achromatic, parfocalled, parcentered and color-coded.

·         4-hole objective turret, reverse position, ball-bearing mounted for smooth, precise changes in magnification.



ILLUMINATION

·         Built-corded LED illumination, delivers greater light and longer life than standard 20-watt tungsten bulb.  Virtually no base heat.  10,000 hour rated bulb.

·         Base mounted on/off switch, heavy-duty 3-wire grounded electrical system and plug.

·         0.5A time delay fuse.



FOCUSING

·         Separate low position coarse and fine focusing controls.

·         Stage moves up or down, eyepiece and body remain fixed.

·         Slip clutch prevents damage to focusing system.

·         Tension adjustment eliminates stage drift.

·         Safety rack stop prevents damage to slides and objective lenses.



STAGE

·         Large 135mm x 135mm (5-1/4 in. x 5-1/4 in.) stage, with professional quality, low profile mechanical specimen holder with low-position coaxial x-y controls.

·         1.25 N.A. Abbe condenser with spiral focusing mount, iris diaphragm, swing-out filter holder, blue filter supplied.



FRAME

·         Rugged cast metal, gray enamel finish.

·         Height 380mm (15 in.).  Net wt. 4.6 kgs (10 lbs).



PACKING

·         Molded styrofoam container with instruction brochure and vinyl dustcover.

·         Individual:  Ship wt. 7 kgs (15 lbs), Dimensions 550x375x375mm (22x15x15 in.)

·         Master carton pack 2 each:  Ship wt. 13.6 kgs (30 lbs), Dimensions 475x375x525mm (19x15x21 in.)



WARRANTY

·         Limited lifetime warranty, excluding bulb, cord and fuse.

PrintPrinter Friendly View

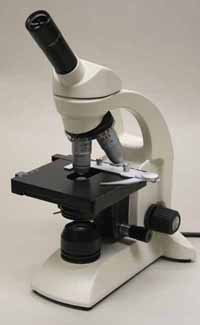

211 Student Microscope by National Optical Picture

Product Number Description MSRP 1-9 Units 10+ Units
211



A Scope Shoppe Preferred Product



A new standard of precision optics, highly engineered mechanics and very rugged construction, all at little more cost than a budget microscope.

$482.00 $429.00 $409.00
Additional Product Options
Product Number Description MSRP 1-9 Units 10+ Units
210 Student Microscope $367.00 $329.00 $319.00
